Components
Technical specs
-
Frame

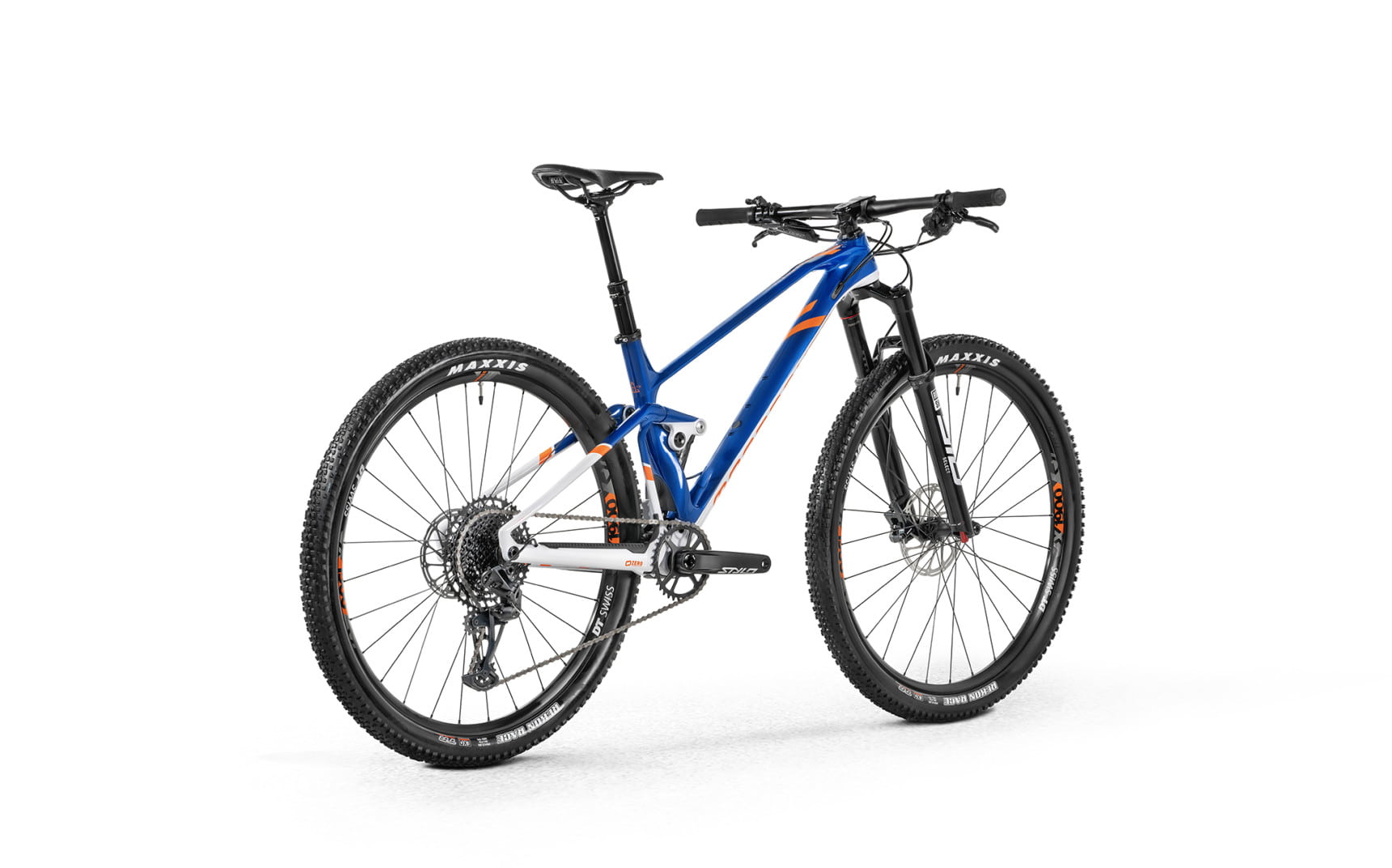

F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 100mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount.
Sizes
S: 390mm / M: 420mm / L: 470mm / XL: 510mm
-
Rear shock
Rockshox SID Select+ RLR Debonair, 185x47.5mm. Settings: OneLock 2 position remote compression (open/lock), low-speed rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
Shock settings
Light compression, medium rebound, Lockout 430, 1 Token
-
Fork
Rockshox SID Select RL 29, 120mm, Charger, Debonair, tapered steerer tube, Boost 15x110mm axle, 35mm tapered aluminum stanchions, offset 44mm. Settings: OneLock 2 position remote compression (open/lock), low-speed rebound, air preload
Headset
Acros AZX-239 R1 Block Lock, ZS44/28.6 top, ZS56/40 bottom
-
Stem
MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: sizes S/M: 50mm, size L: 60mm, size XL: 70mm
Handlebar
Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore
-
Grips
Onoff Twin, 1lock-on, 135mm
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, S size: 337x100mm, M/L/XL size 387x125mm
-
Saddle
Fizik Antares R7
Front brake
Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
-
Rear brake
Sram Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever
Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings
-
Rims
DT Swiss X1900 Spline 29, 25mm internal width, sleeved aluminum, tubeless ready, 28 spokes
Spokes
DT Champion, straightpull
-
Front hub
DT 370, Boost 15x110mm, IS 6 bolts
Rear hub
DT 370, Boost 12x148mm, 3 Pawl system, IS 6 bolts
-
Front tire
Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead
Rear tire
Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead
-
Crankset
Truvativ Stylo 6K Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm
Rings
34T, steel, X-Sync 2
-
Bottom bracket
Sram DUB BSA, sealed bearings, 73mm
Chain
Sram SX Eagle, 12s, Powerlock
-
Rear derrailleur
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers
Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click
-
Casette
Sram PG-1230, 11-50T, 12s
Derailleur hanger
Sram UDH
-
Weight
12.4 kg
