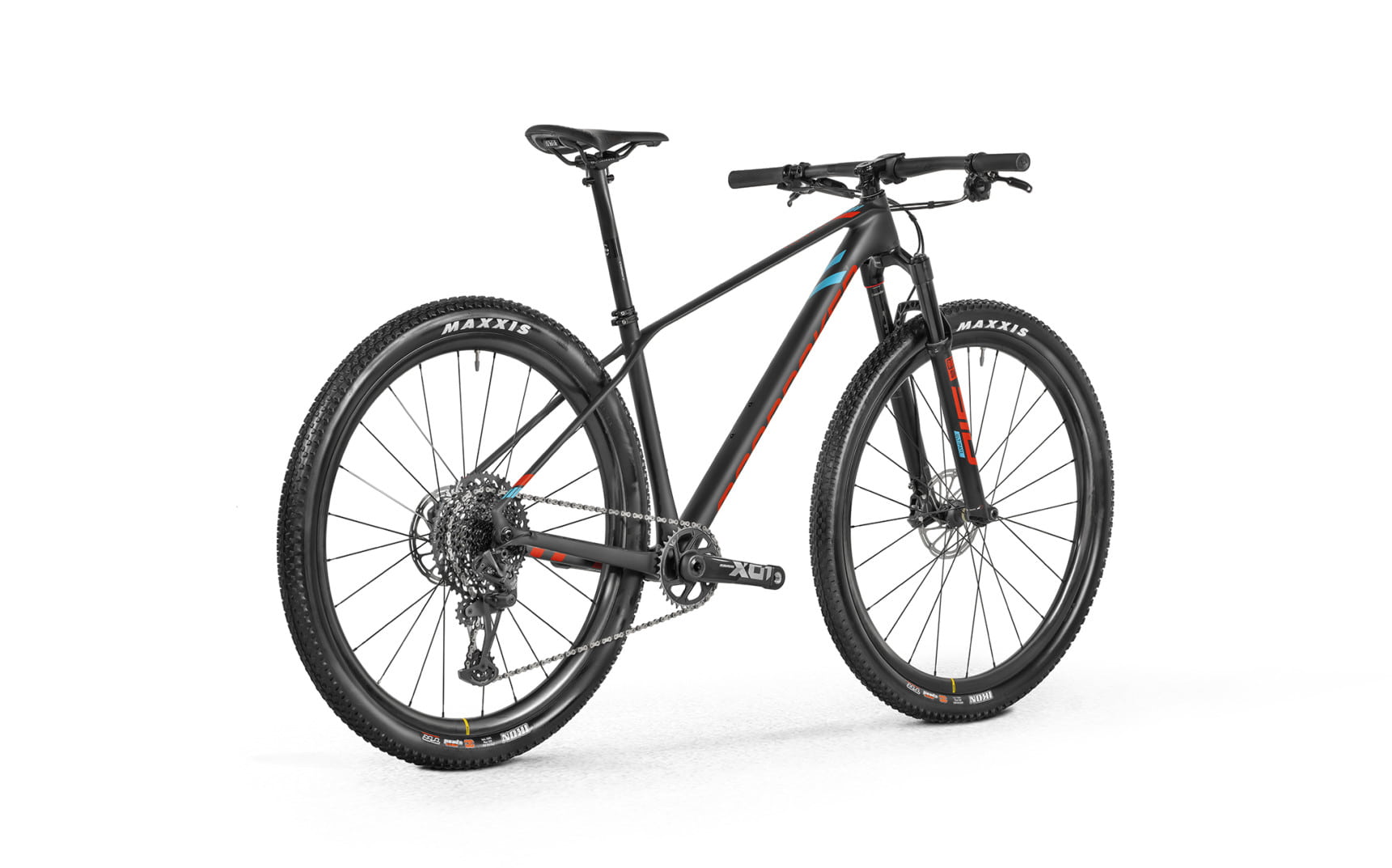

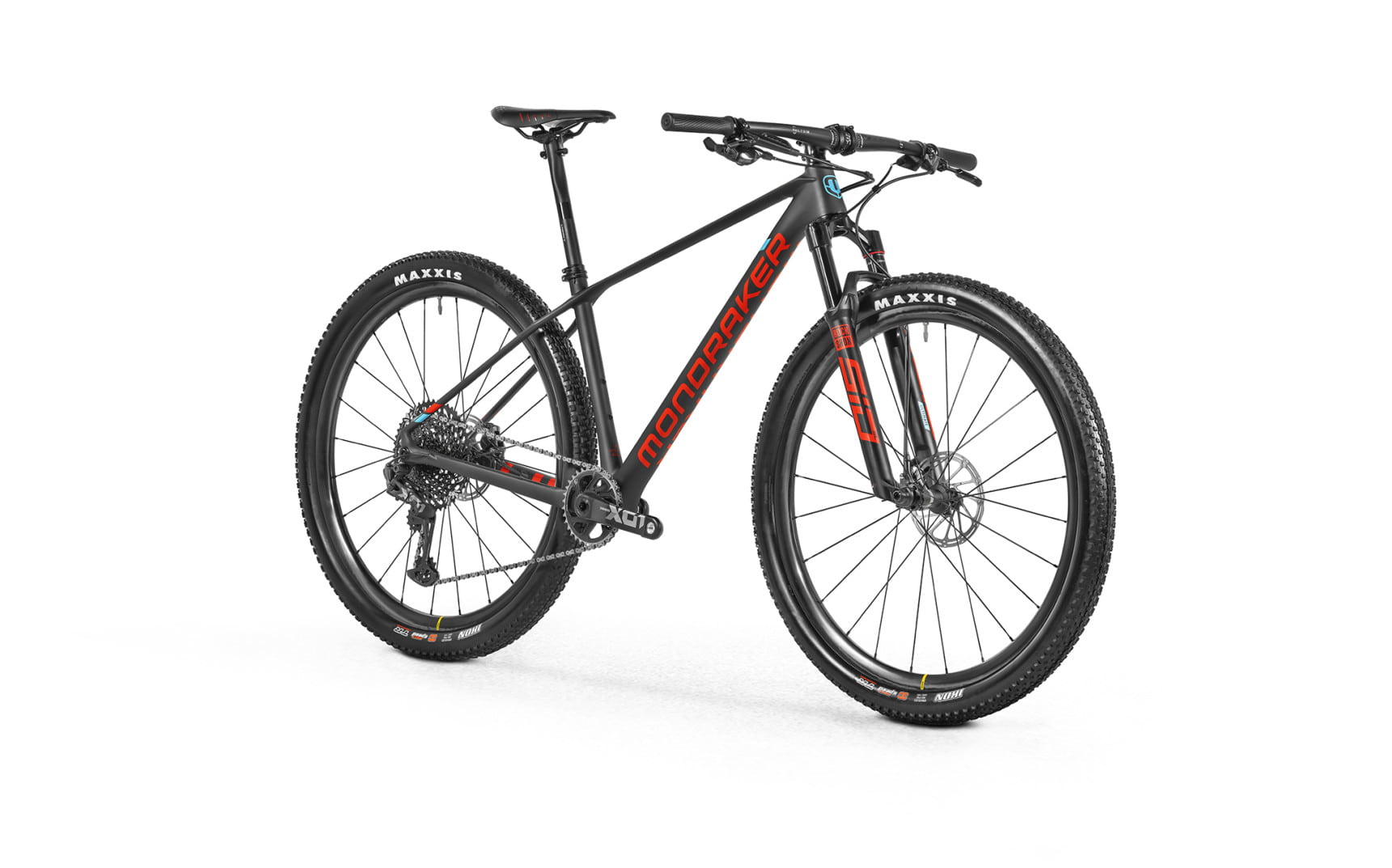

PODIUM CARBON RR

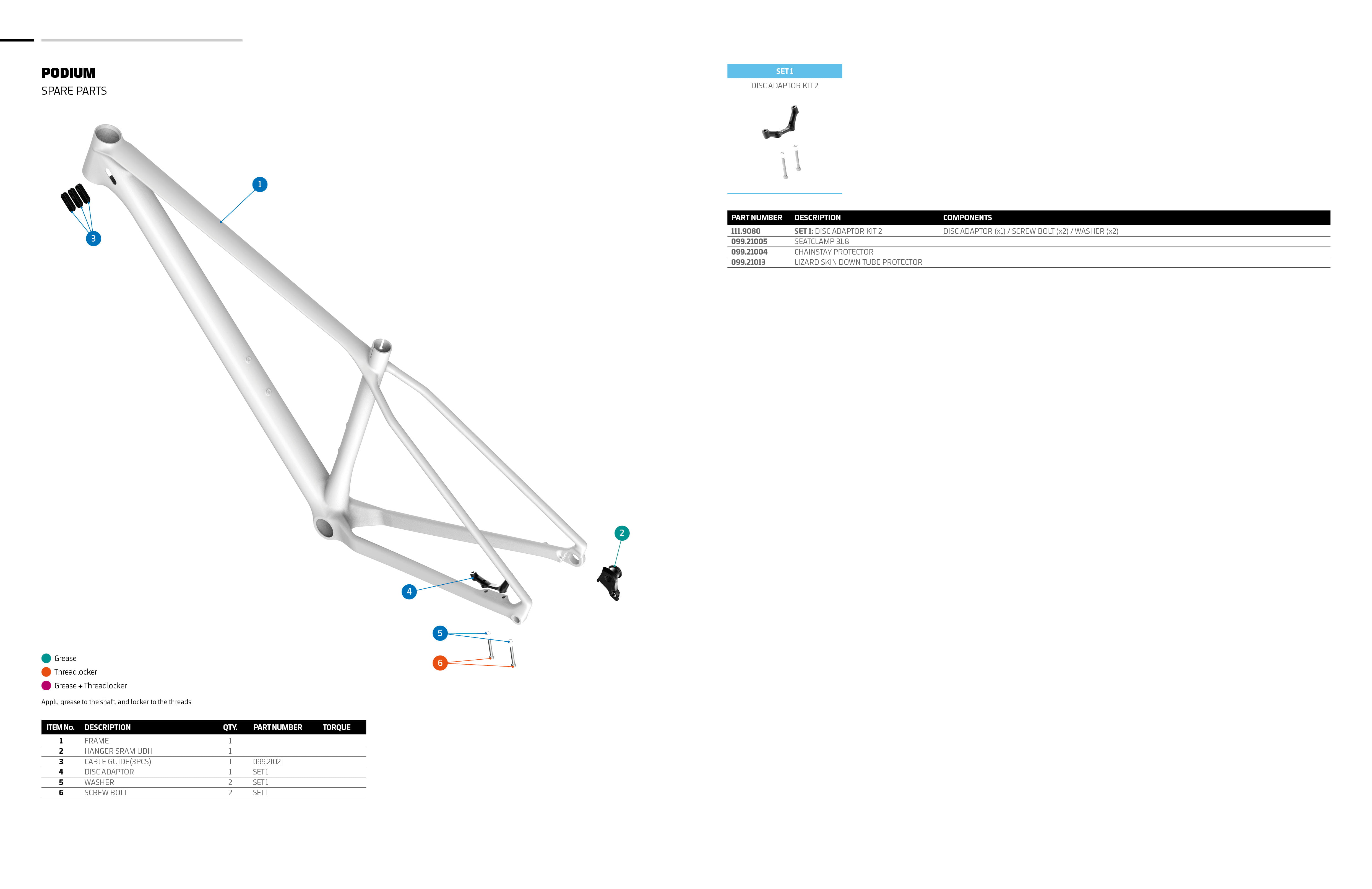

Frame

Podium 29 Stealth Air Carbon, XC Forward Geometry, BSA bottom bracket, tapered head tube, HHG internal cable routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible,

Sizes

S: 390mm / M: 420mm / L: 470mm / XL: 510mm

Fork

Rockshox SID SL Ultimate RL 29, 100mm, Charger Race day, Debonair, tapered steerer tube, Boost 15x110mm axle, 32mm aluminum stanchions, offset 44mm. Settings: OneLock 2 position remote compression (open/lock), low-speed rebound, air preload

Headset

Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º

Stem

MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: sizes S/M: 60mm, size L: 70mm, size XL: 80mm

Handlebar

Onoff Helium Carbon 0.2, rise: 4.8mm, width: 740mm, 9º backsweep, 0º upsweep, 31.8mm barbore

Grips

Onoff Desert, 1lock-on, 135mm, sizes: S/M L/XL

Seatpost

Onoff Helium Carbon 0-R VFLEX, diameter 27.2mm, length 400mm

Saddle

Fizik Antares R7

Front brake

Sram Level TLM, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

Rear brake

Sram Level TLM, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

Brake lever

Sram Level TLM, Direct Link actuation, tooled reach adjust, lever pivot bushings

Rims

Mavic Crossmax SLR Carbon 29, 26mm internal width, hookless, UST tubeless, 24 spokes

Spokes

Mavic steel butted, bladed, straightpull

Front hub

Mavic Boost 15x110mm, IS 6 bolts

Rear hub

Mavic Boost 12x148mm, 24T Ratchet system, IS 6 bolts, XD freehub

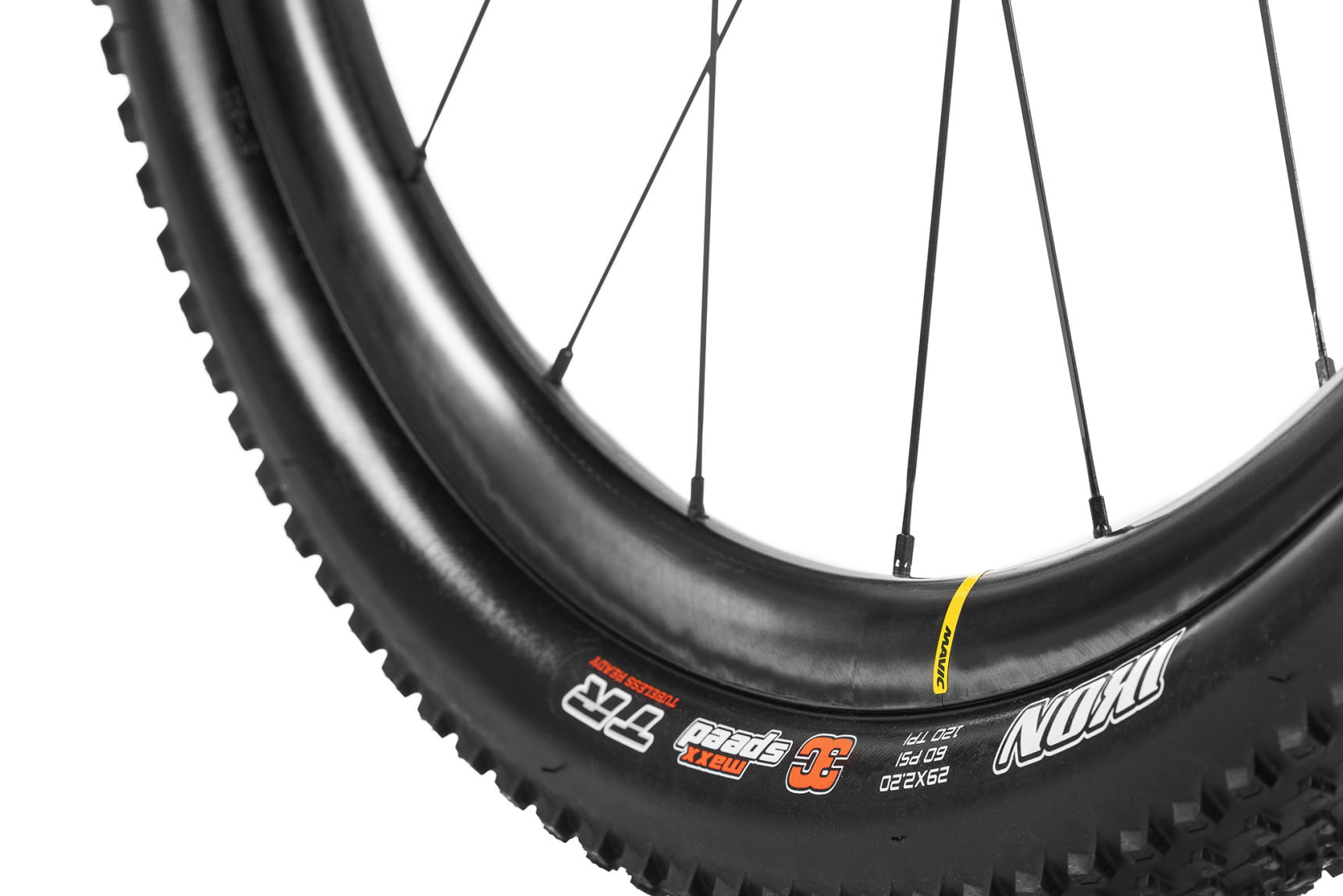

Front tire

Maxxis Ikon 29x2.20, 3CMaxx Speed compound, tubeless ready, 120TPI, folding bead

Rear tire

Maxxis Ikon 29x2.20, 3CMaxx Speed compound, tubeless ready, 120TPI, folding bead

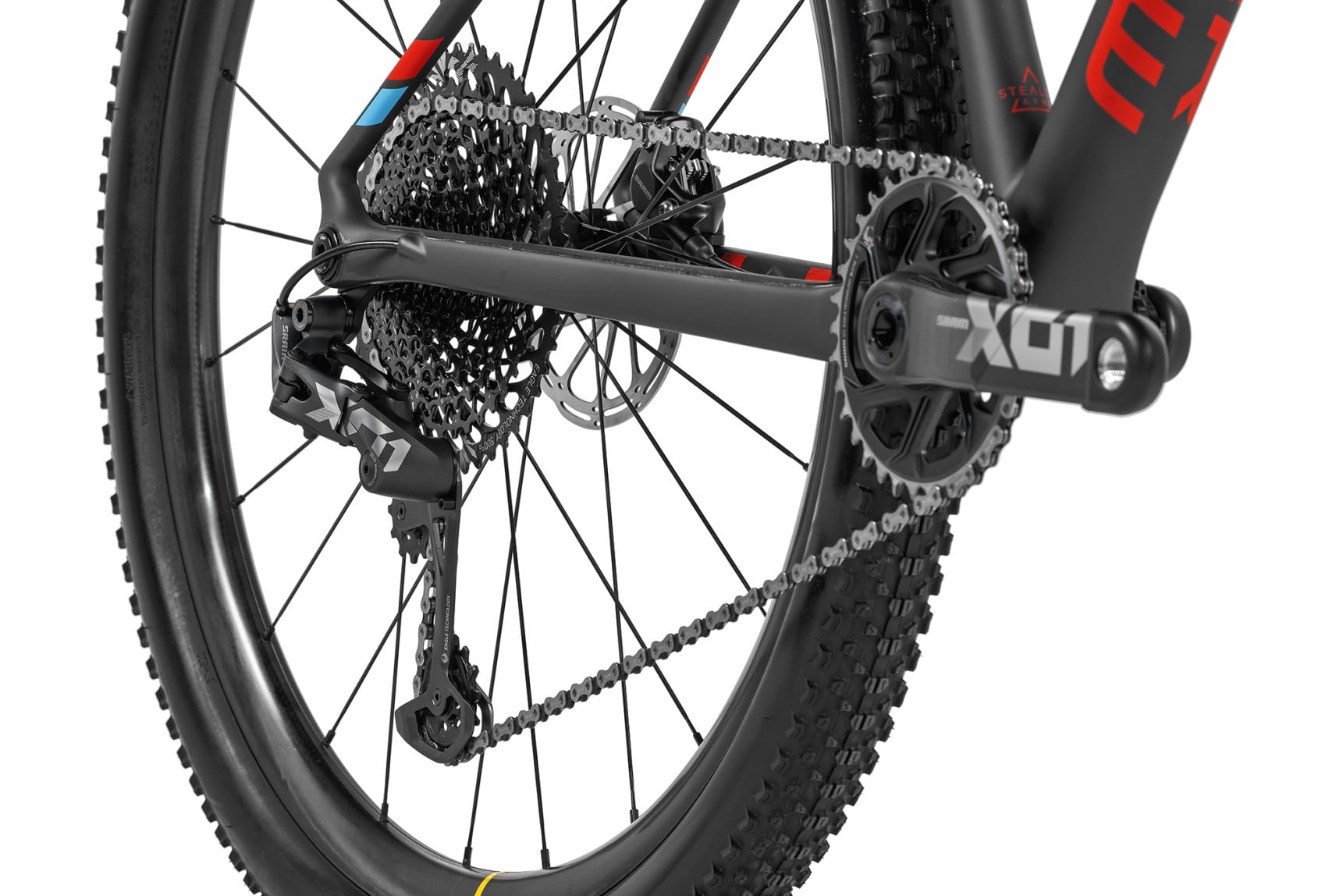

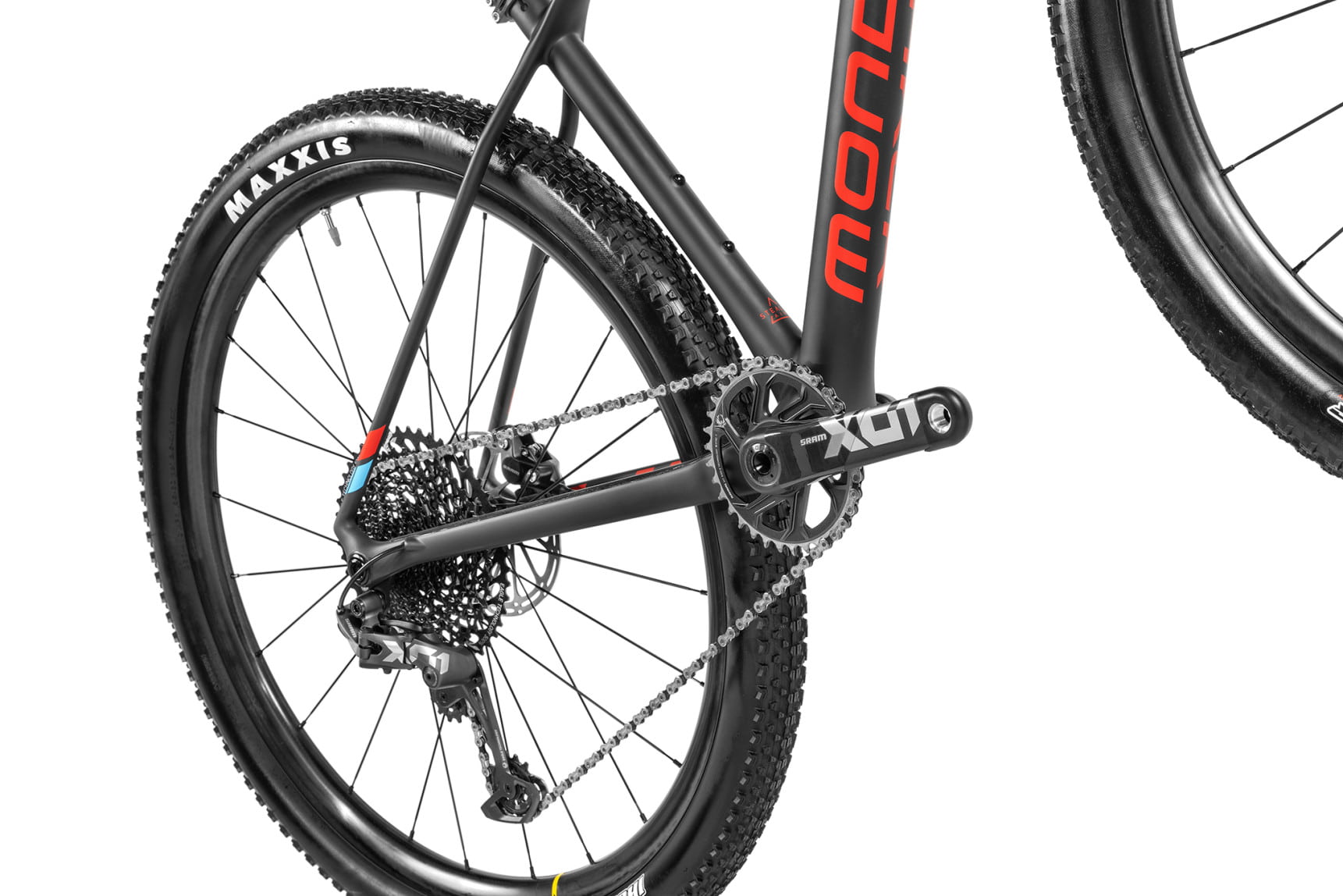

Crankset

Sram X01 Carbon Eagle, Boost, DUB axle, Direct mount chain ring, S size: 170mm, M/L/XL size: 175mm

Rings

34T, CNC-machined alloy, X-SYNC 2

Bottom bracket

Sram DUB BSA, sealed bearings, 73mm

Chain

Sram GX Eagle, 12s, Powerlock

Rear derrailleur

Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

Shift levers

Sram Trigger GX Eagle, 12s, X-Actuation 1:1

Casette

Sram XG-1275, 10-50T, 12s

Derailleur hanger

Sram UDH

Weight

8.4 kg
