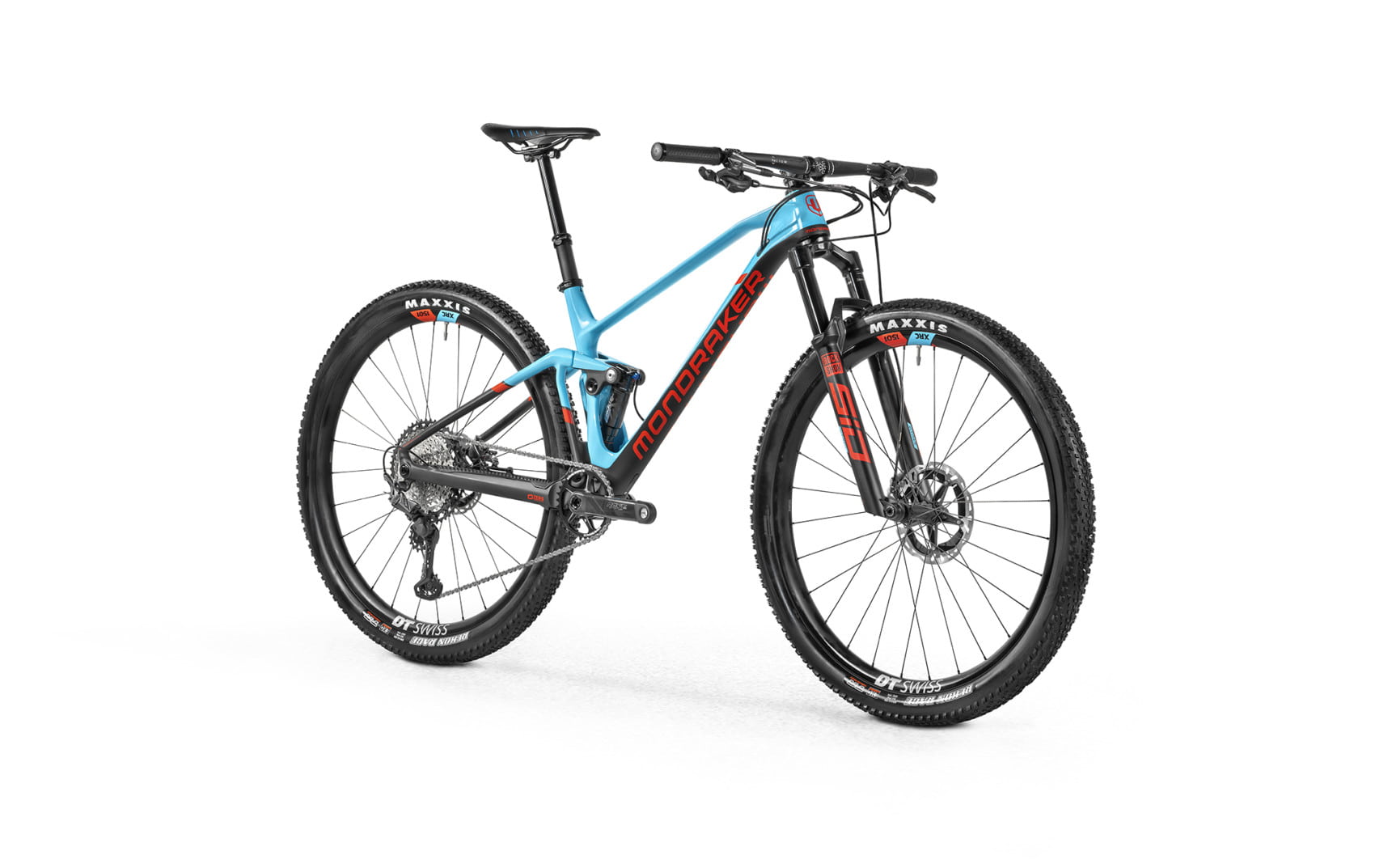

F-PODIUM CARBON DC RR

Frame

F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 100mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount.

Sizes

S: 390mm / M: 420mm / L: 470mm / XL: 510mm

Rear shock

Rockshox SID Luxe Ultimate RLR Debonair, 185x47.5mm. Settings: TwistLock 2 position remote compression (open/lock), low-speed rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings

Shock settings

Light compression, medium rebound, Lockout 430, 1 Token

Fork

Rockshox SID Ultimate RL 29, 120mm, Charger Race day, Debonair, tapered steerer tube, Boost 15x110mm axle, 35mm tapered aluminum stanchions, offset 44mm. Settings: TwistLock 2 position remote compression (open/lock), low-speed rebound, air preload

Headset

Acros AZX-239 R1 Block Lock, ZS44/28.6 top, ZS56/40 bottom

Stem

Onoff Helium 7075 alloy CNC, 31.8mm barbore, rise: +/-5º, length: sizes S/M: 50mm, size L: 60mm, size XL: 70mm

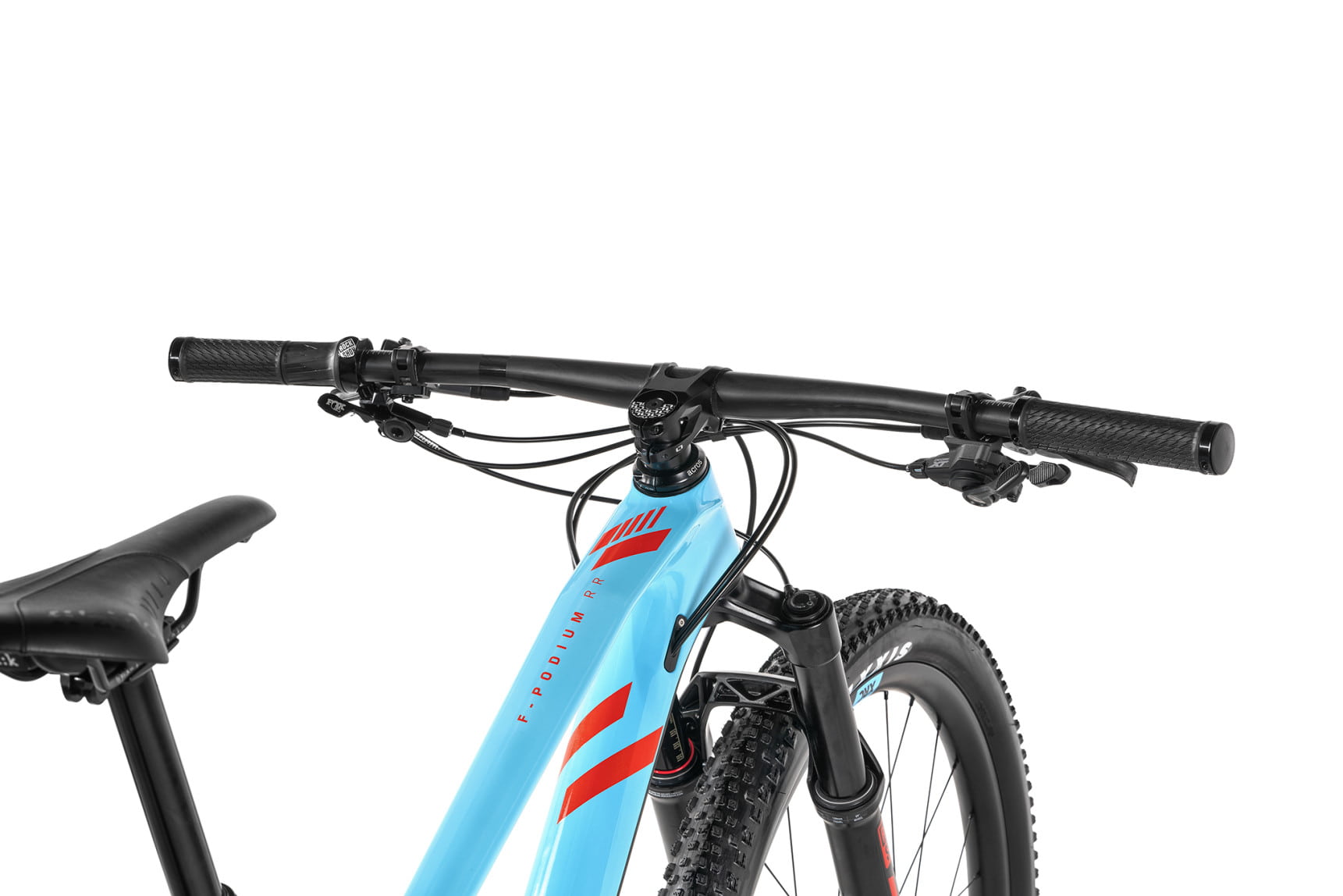

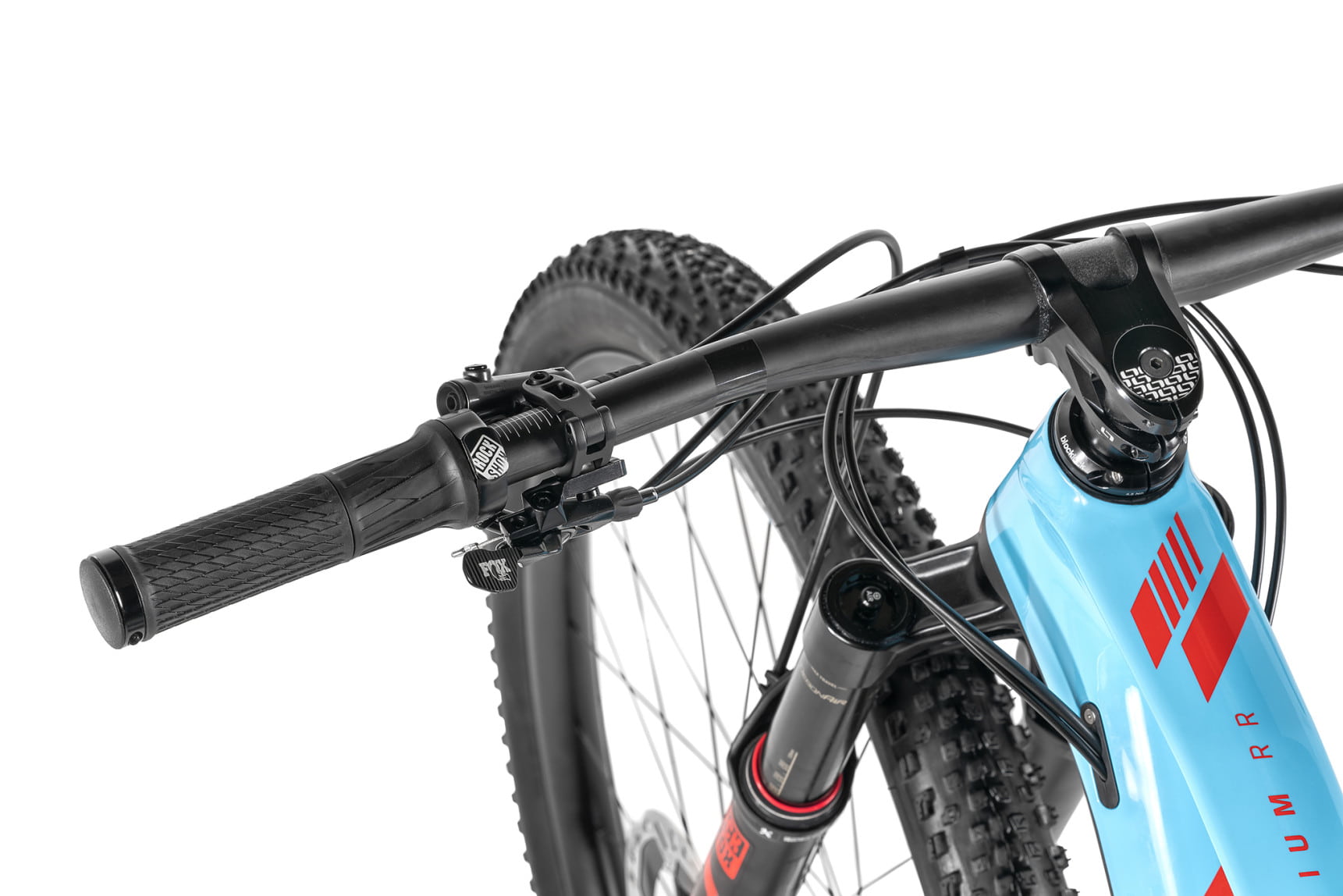

Handlebar

Onoff Helium Carbon 0.2, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore

Grips

Onoff Desert, 1lock-on, 135mm, sizes: S/M L/XL

Seatpost

Fox Transfer Performance internal, diameter 31.6mm,S size: 363.5x125mm, M/L/XL size: 418.3x150mm

Saddle

Fizik Antares R7

Front brake

Shimano XTR M9100, MT900 180mm CenterLock rotor, resin pads

Rear brake

Shimano XTR M9100, MT900 160mm CenterLock rotor, resin pads

Brake lever

Shimano XTR M9100, ergonomic antiskid lever with servo wave, tool less reach adjust

Rims

DT Swiss XRC1501 Carbon Spline 29, 30mm internal width, hookless, tubeless ready, 28 spokes

Spokes

DT Competition, straightpull

Front hub

DT 240, Boost 15x110mm, CenterLock

Rear hub

DT 240, Boost 12x148mm, 36T Ratchet EXP system, CenterLock, MS freehub

Front tire

Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead

Rear tire

Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead

Crankset

Race Face NEXT SL Carbon, Boost, Direct mount chain ring, S size: 170mm, M/L/XL size: 175mm

Rings

34T, CNC-machined alloy

Bottom bracket

Race Face BSA, 73mm

Chain

Shimano XT M8100, 12s, Quick-link

Rear derrailleur

Shimano XTR M9100, SGS, Shadow+, 12s

Shift levers

Shimano XT M8100, Rapid Fire Plus, 12s

Casette

Shimano XT M8100 10-51T Hyperglide+, 12s

Derailleur hanger

Sram UDH

Weight

10.8 kg
