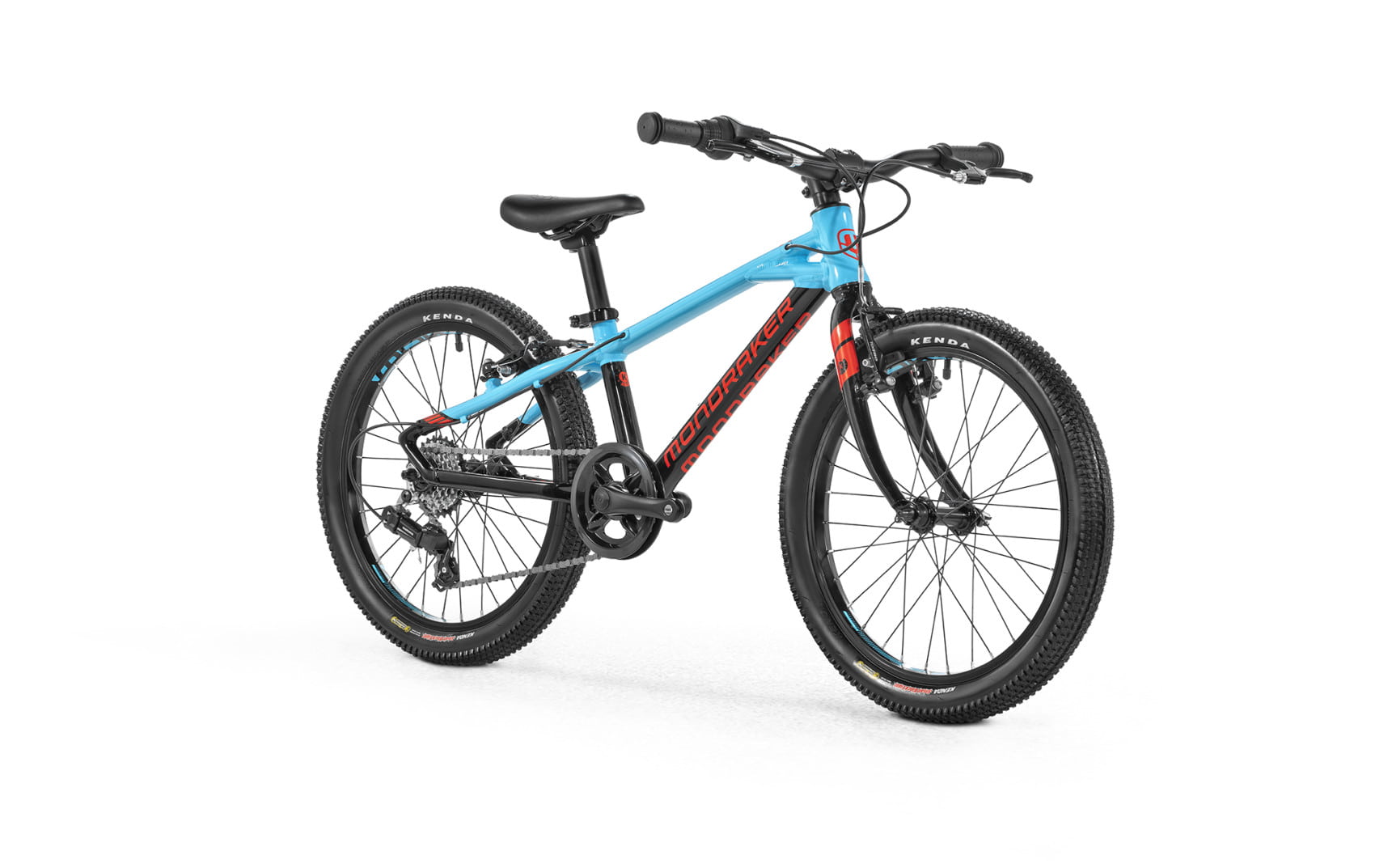

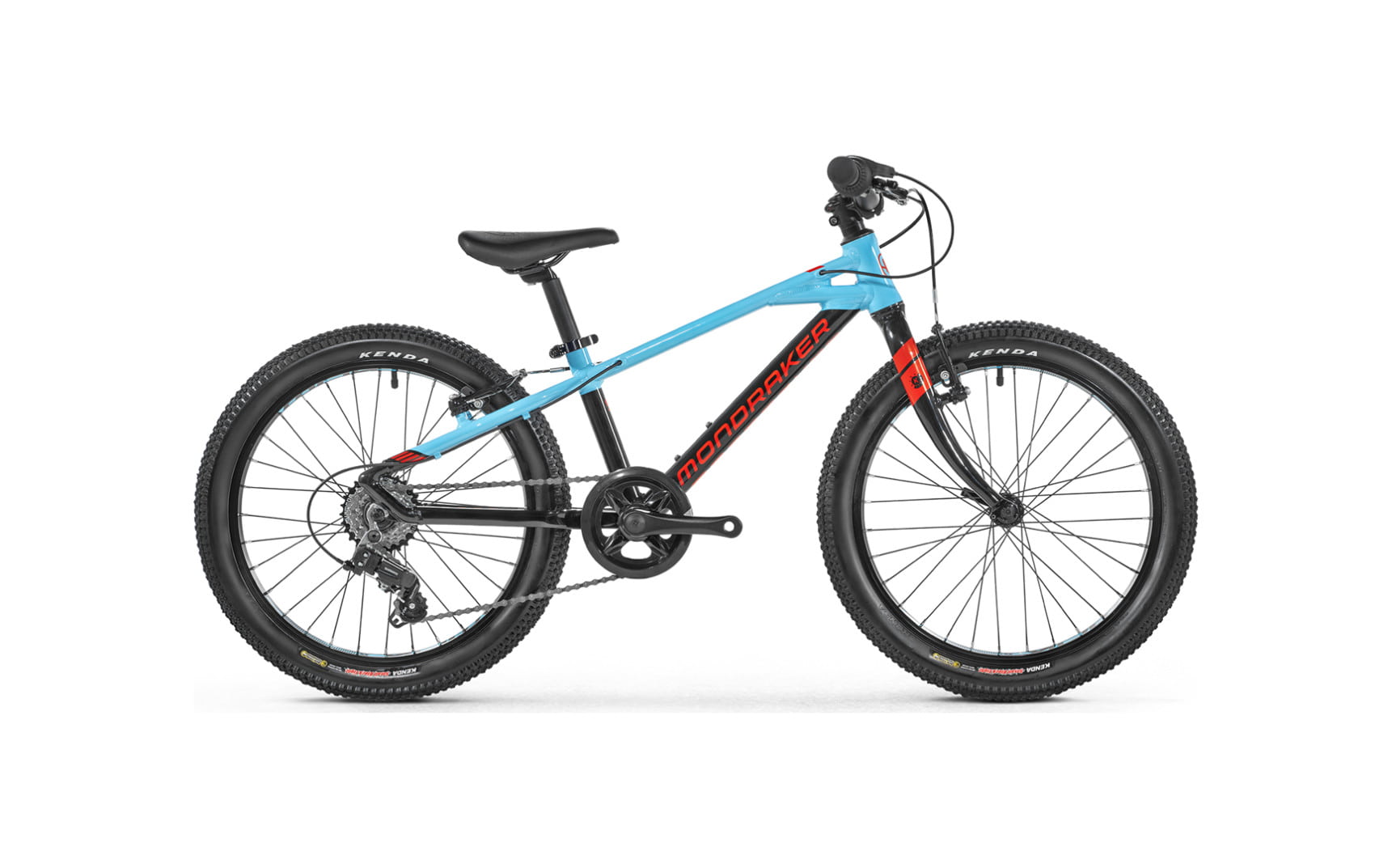

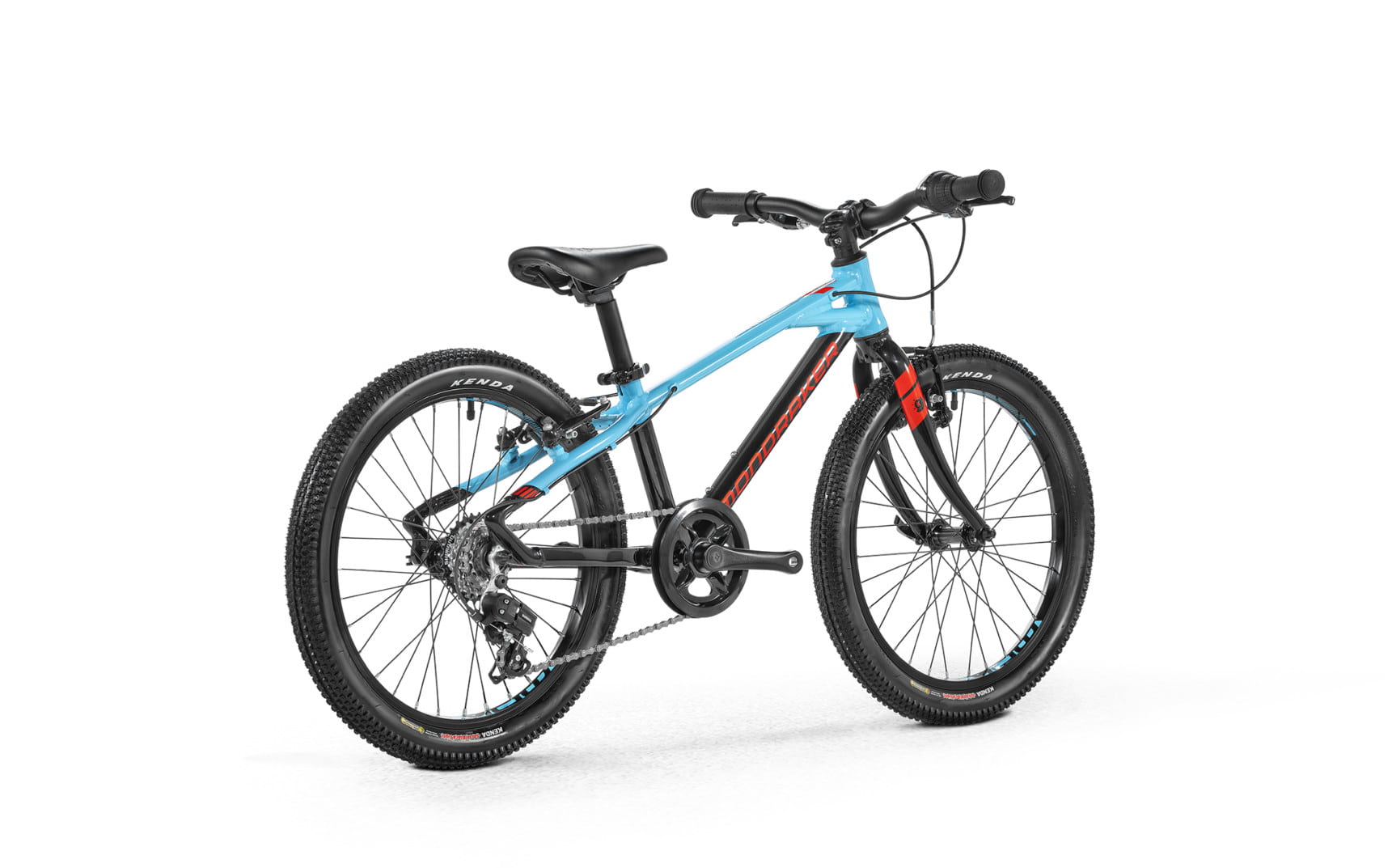

LEADER 20

Frame

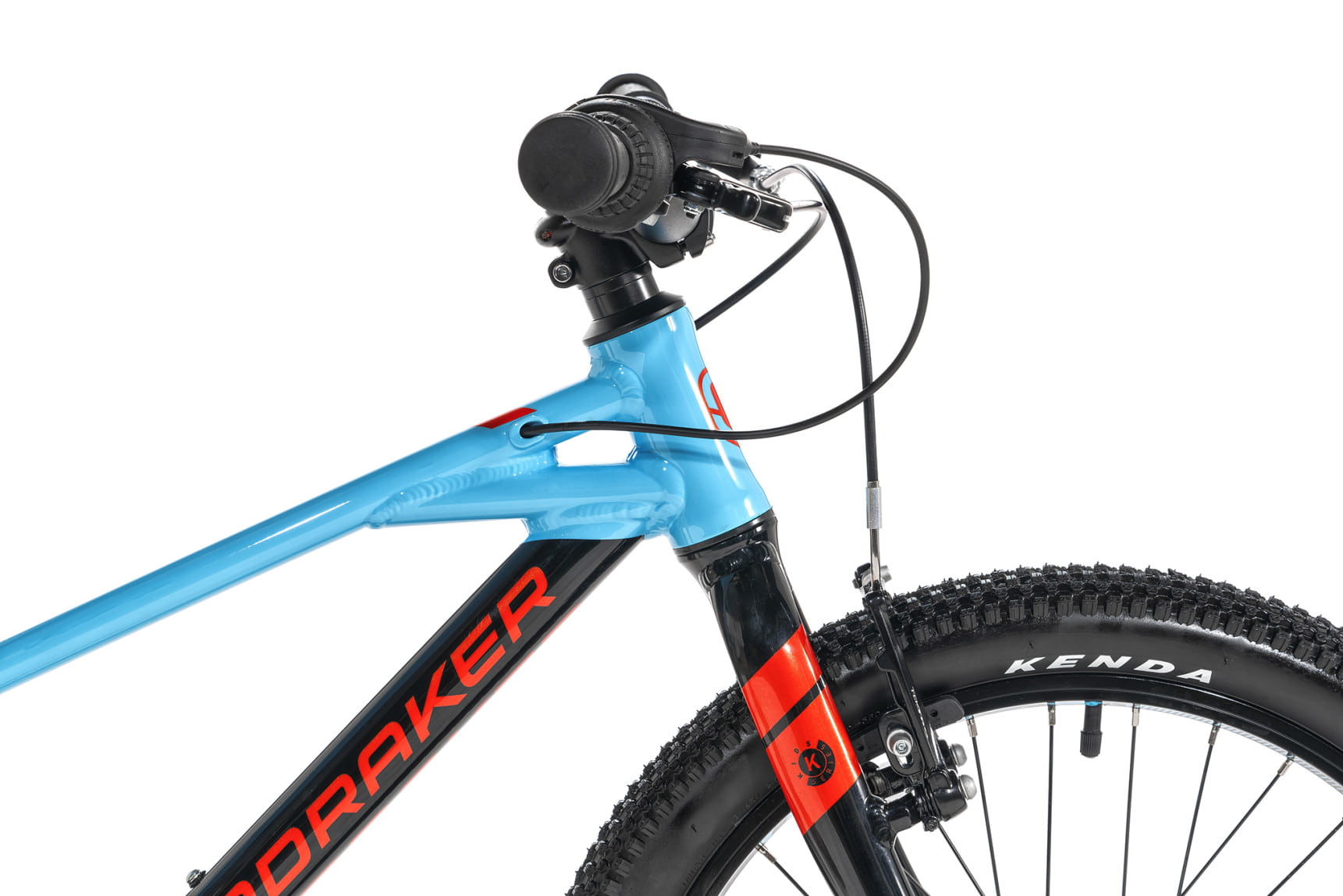

Leader 20 7005 Alloy Stealth Evo, HHG internal cable routing, internal headset, replaceable hanger, BSA bottom bracket, QR 9mm rear axle

Sizes

One size 260mm

Fork

MDK 20 Kid, Alloy stanchions, Chromoly steering tube

Headset

CH-9280, Internal ZS, 44mm external diameter cup

Stem

MDK XC, 6061 forged alloy, 25.4mm barbore, rise: 0º, length: 35mm

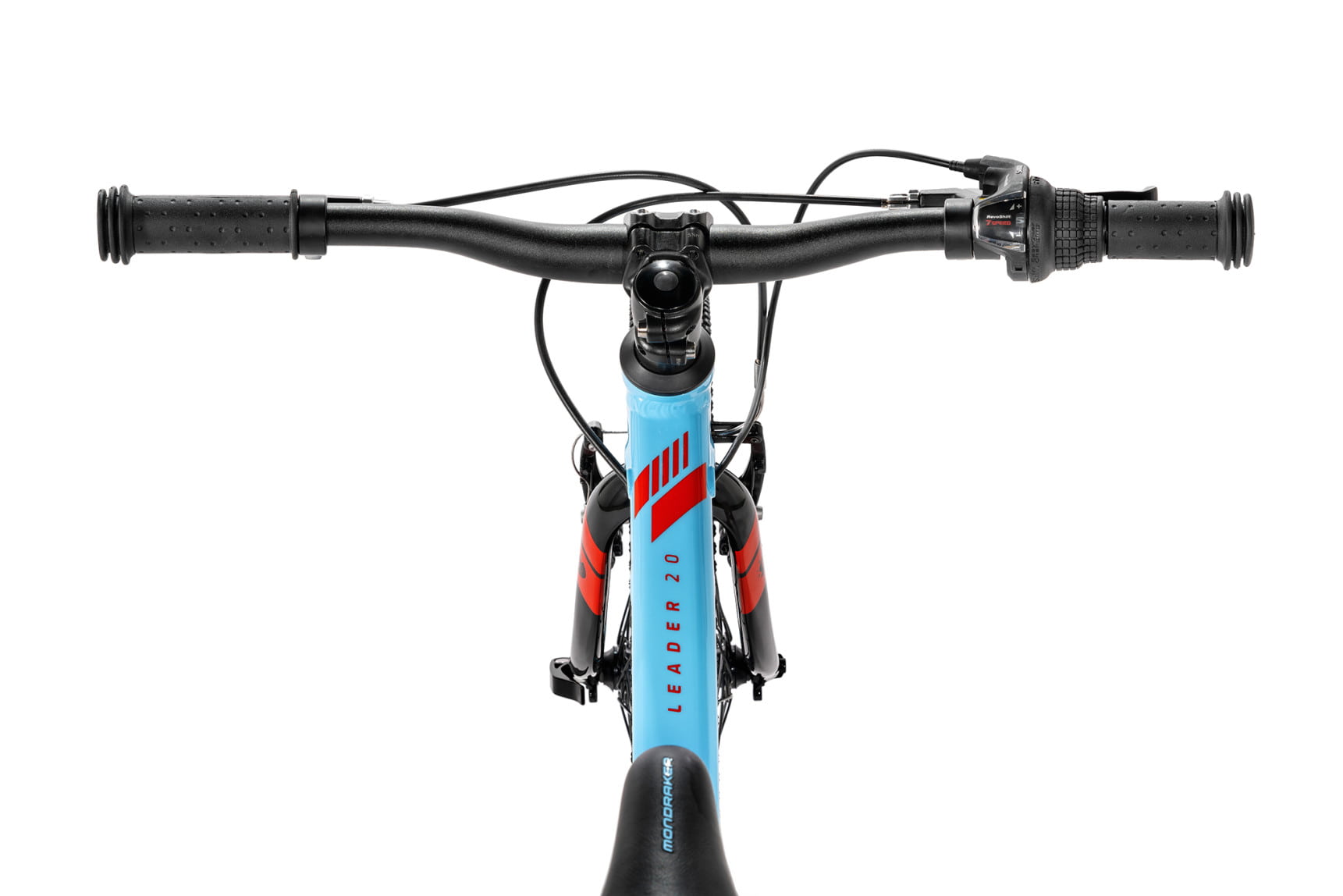

Handlebar

MDK XC 1.0, 6061 alloy, rise: 25mm, width: 560mm, 9º backsweep, 5º upsweep, 25.4mm barbore

Grips

Onoff Diamond, 75mm

Seatpost

MDK XC, 6061 T6 alloy, diameter 27.2mm, length 250mm, offset 15mm

Saddle

Mondraker Leader Kids series

Front brake

Tektro Alloy V-Brake

Rear brake

Tektro Alloy V-Brake

Brake lever

Tektro 2-finger kids

Rims

MDK-20 Alloy, 32 spokes

Spokes

CN round stainless steel

Front hub

Formula OV31FQR, 9x100mm QR axle, cup & cone ball bearings

Rear hub

Formula OV31RQR, 9x135mm QR axle, cup & cone ball bearings

Front tire

Kenda Small Block Eight 20x2.1, single compound, 30TPI, wire bead

Rear tire

Kenda Small Block Eight 20x2.1, single compound, 30TPI, wire bead

Crankset

Prowheel, 140mm

Rings

36T

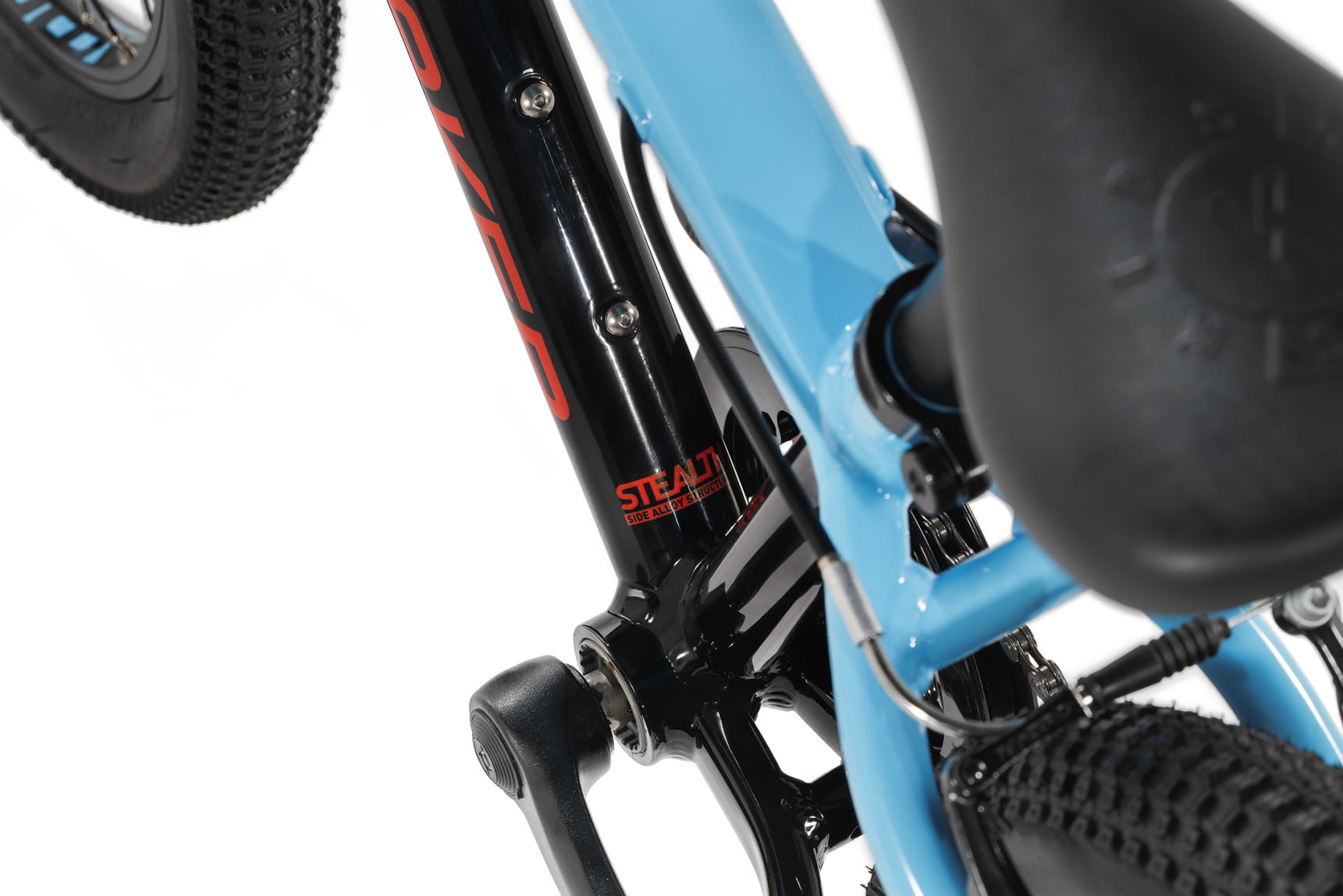

Bottom bracket

CH-52

Pedals

Wellgo LU-P28

Chain

KMC Z-7, 7s

Rear derrailleur

Shimano TY200-SS, super short cage, 7s

Shift levers

Shimano RV200-7R, Revoshift, 7s

Casette

Shimano TZ510-7, 14-28T, 7s

Derailleur hanger

Mondraker M073

Weight

8.9 kg
