FOXY R

Frame

Foxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05

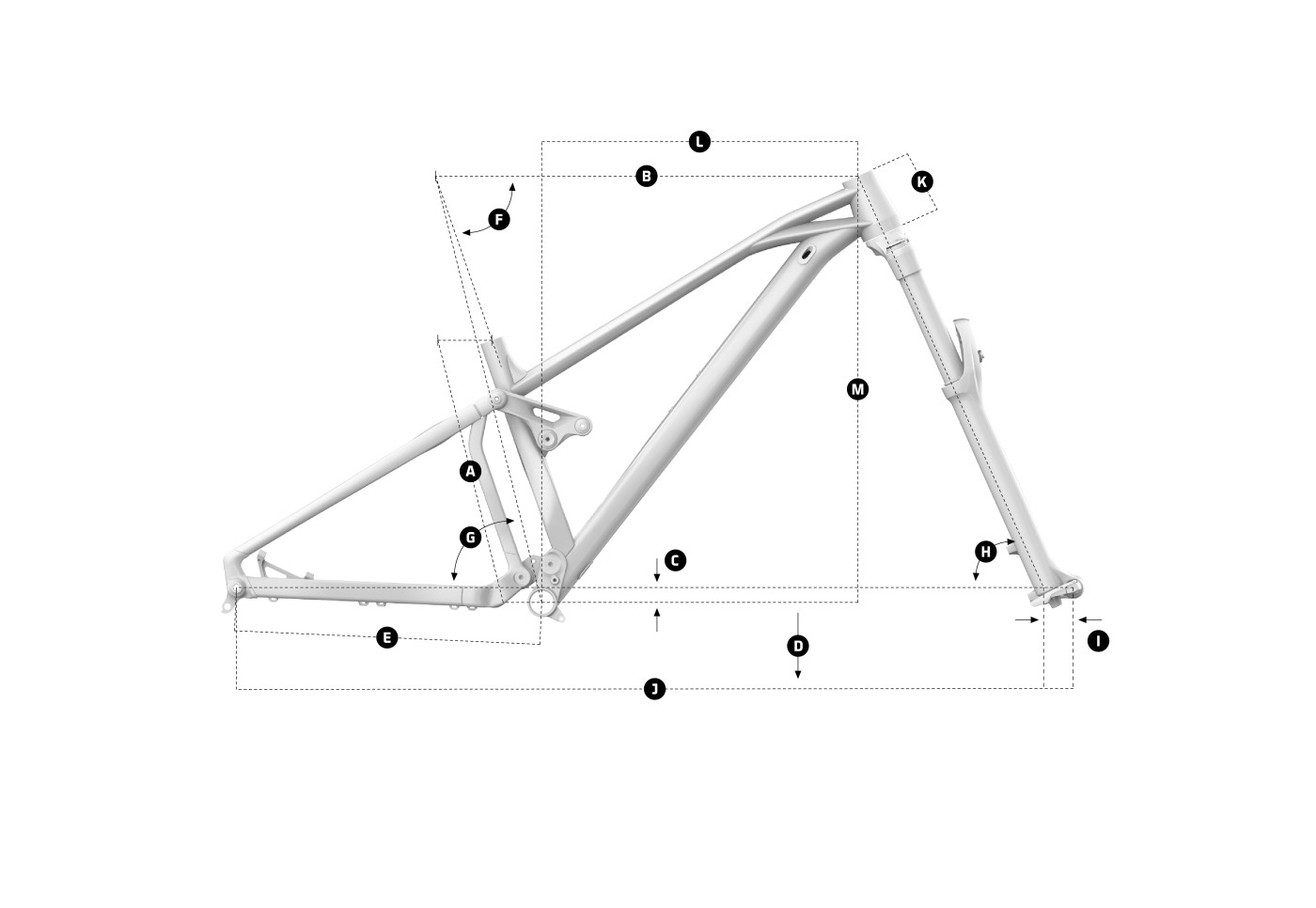

Sizes

S: 380mm / M: 420mm / L: 470mm / XL: 510mm

Rear shock

Fox Float DPX2 LV EVOL Performance, 205x62.5mm. Settings: compression 3 positions lever, low-speed rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings

Shock settings

Light compression, extralight rebound, air volume spacer 0.6

Fork

Fox 36 29 Float FIT GRIP EVOL Performance, 160mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload

Headset

Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

Stem

Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

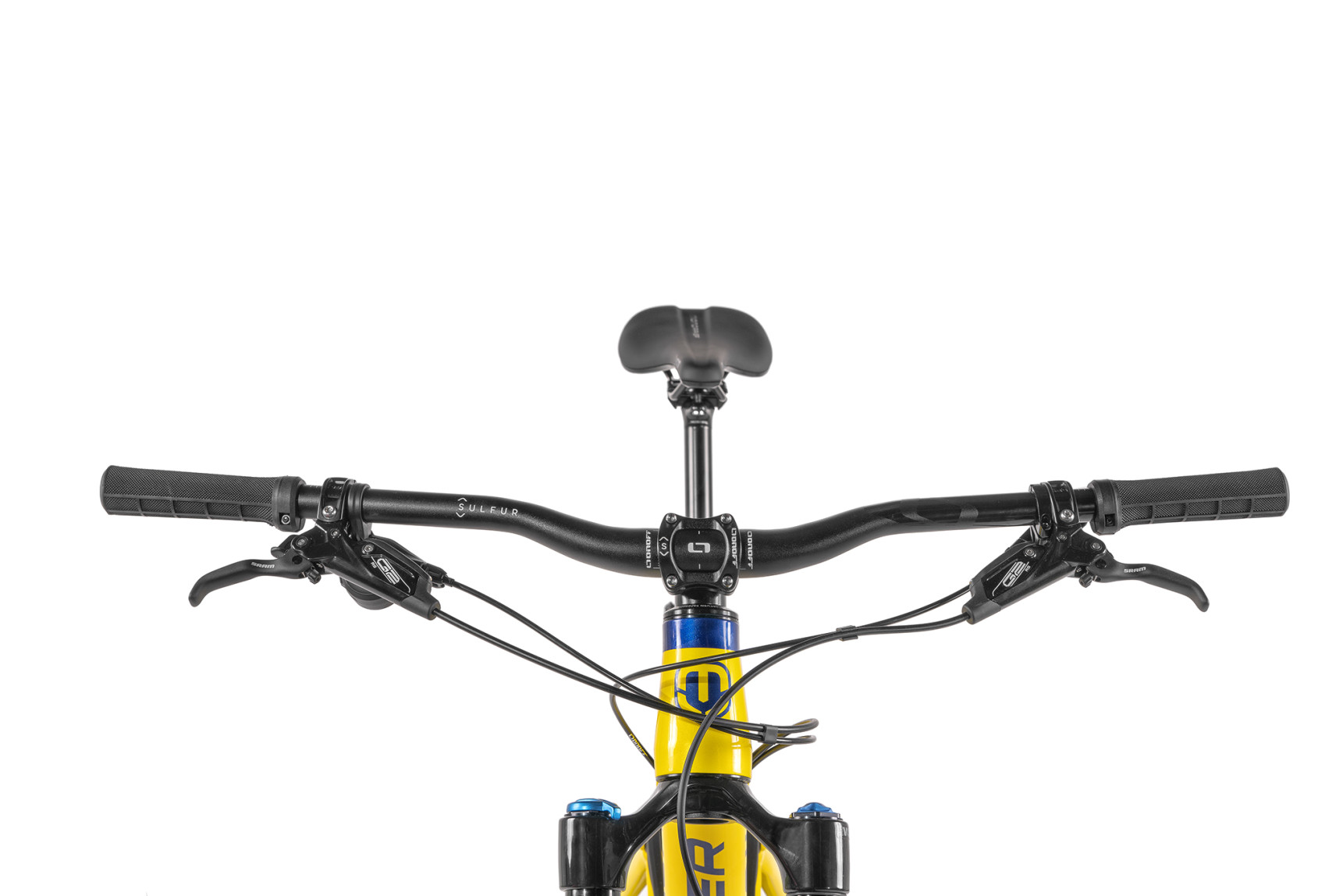

Handlebar

Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9º backsweep, 5º upsweep, 31.8mm barbore

Grips

Onoff Twin, 1lock-on, 135mm

Seatpost

Onoff Pija dropper internal, diameter 31.6mm, S size: 337x100mm, M size 387x125mm, L size: 425x150mm, XL size: 465x170mm

Saddle

SDG BEL-AIR 3.0, LPU foam, steel rails

Front brake

Sram G2 RS, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

Rear brake

Sram G2 RS, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

Brake lever

Sram G2 RS, SwingLink, tool-free reach adjust

Rims

DT Swiss E1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 spokes

Spokes

DT Champion, straightpull

Front hub

DT 370, Boost 15x110mm, IS 6 bolts

Rear hub

DT 370, Boost 12x148mm, 3 Pawl system, IS 6 bolts, MS freehub

Front tire

Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

Rear tire

Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead

Crankset

Shimano XT M-8120 Boost, Hollowtech II, Q-factor 178mm, S/M size: 170mm, L/XL size: 175mm

Rings

32T, CNC-machined alloy

Bottom bracket

Shimano Deore BB52 BSA, 68/73mm

Chain

Shimano Deore M6100, 12s, Quick-link

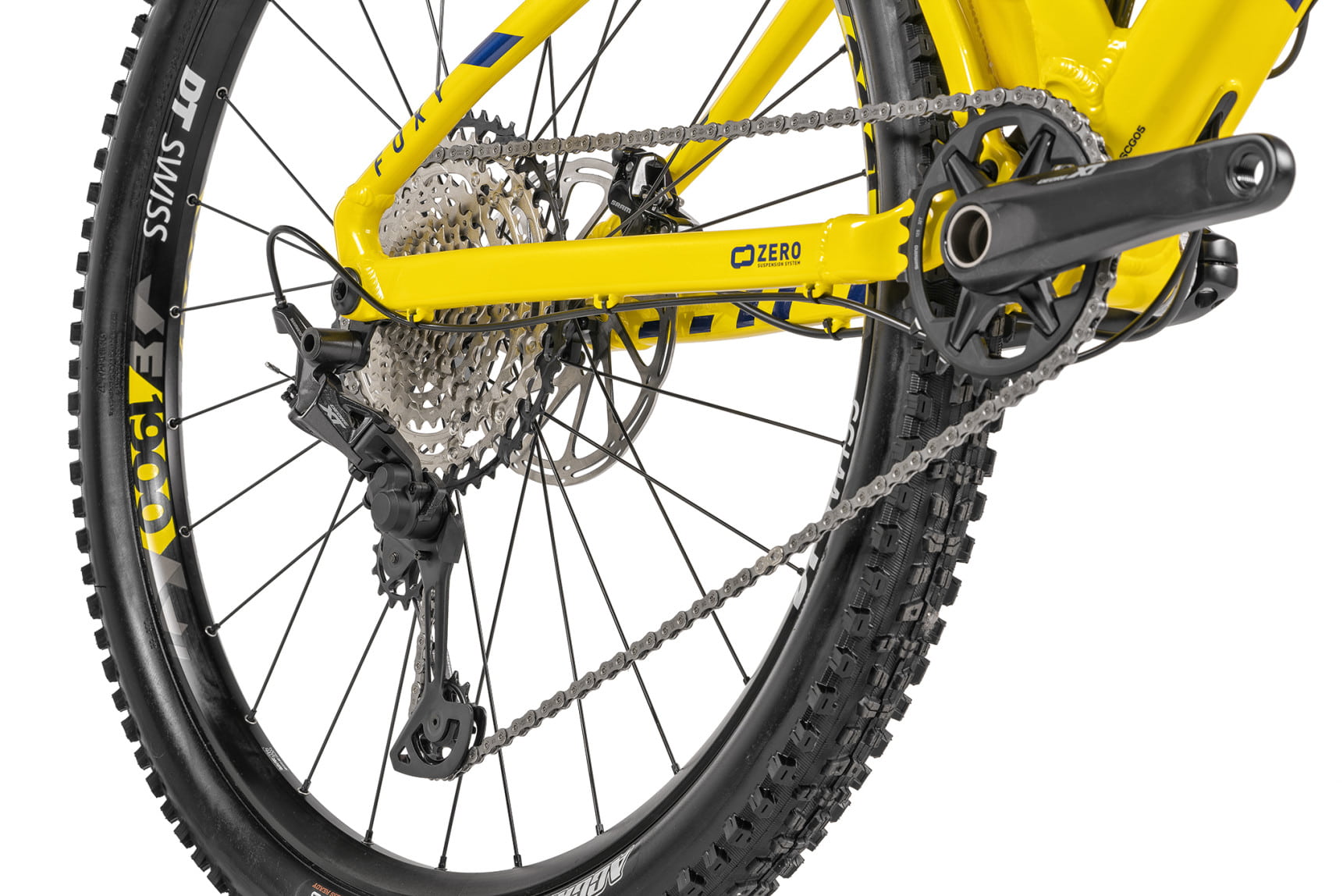

Rear derrailleur

Shimano XT M8100, SGS, Shadow+, 12s

Shift levers

Shimano Deore M6100, Rapid Fire Plus, 12s

Casette

Shimano SLX M7100, 10-51T Hyperglide+, 12s

Derailleur hanger

Mondraker M068

Weight

14.8 kg
